NAVIGATING HAZARDOUS MATERIALS SHIPPING
At Carlile Transportation, shipping hazardous materials is critical across multiple transportation modes: ground (49 CFR), air (IATA DGR), and vessel (IMDG Code). The regulations for shipping limited quantities can vary between these modes.
Allowable weight and key regulations
Ground (49 CFR): Part 173 packaging instructions in Column 8A of the 172.101 shipping table. The maximum allowed is 66 lbs. per package.
Air (IATA DGR): Packing instructions in Section 5 in Column G of the IATA DGR 4.2 DG List. The maximum allowed is 66lbs per package. (detailed in Column H of the IATA DGR 4.2 DG List.)
Vessel (IMDG Code): Packaging instructions in Column 7A of the IMDG Code 3.2 DG List. The maximum allowed is 66lbs per package.
Maximum Allowed for Shipping as Limited Quantity
No more than the below quantities can be shipped per mode of transportation. If more quantity is shipped then it is no longer considered Limited Quantity.
Ship to the most strict mode
If a shipment is moving across multiple modes of transportation then the shipper needs to package and adhere to the strictest guidelines of the mode being shipped.
Example 1: Shipper >> Truck >> Ocean >>Consignee
The strictest mode is Ocean, therefore the freight and paperwork must be packaged for Ocean shipping.
Example 2: Shipper >> Truck >> Ocean >> Air >> Truck >> Consignee
The strictest mode is Air. Therefore the freight and paperwork must be packaged for Air shipping.
PACKAGING REQUIREMENTS
No matter how you ship the shipper is responsible for shipping to the strictest mode that the freight is travelling on. All modes of shipping (truck, air, ocean) have regulations that limit the amount aka quantity of hazardous materials/dangerous goods allowed in inner packaging.
All modes require strong outer packaging for limited quantities of hazardous materials
Shippers are not required to use UN specification markings.IATA regulations specify that packages must be capable of passing certain tests.
MARKING, LABELING & PLACARDING REQUIREMENTS
Freight that falls within Limited Quantities still needs to be packaged for the strictest mode.
Both DOT and IMDG require that the outside of the packaging aka the surface of limited quantity markings must be affixed as appropriate.
Common Items not regulated OTR but regulated OTW.
GROUND (49 CFR)
Marking & Labeling
Use the limited quantity mark.
Orientation Arrows are required for liquids.
Liquid Marker
Solid Marker
Shipping Papers
Papers are not required unless the shipment is a hazardous waste, hazardous substance, or marine pollutant.
Placarding
No placards required.
VESSEL (IMDG CODE)
Marking & Labeling
Limited quantity marking is required (IMDG Code 3.4.5).
If the material is liquid, orientation arrows must be used.
Shipping Papers
Full shipping papers are required. The words “Limited Quantity” must be included after the basic description (IMDG Code 5.4.1.5.2)
Placarding
No placards required, except for a large limited quantity mark on freight containers transporting only limited quantities.
AIR (IATA DGR)
Marking & Labeling
Use the air limited quantity mark (“Y”),
Orientation arrows for liquids,
Proper shipping name,
UN ID number,
Shipper’s and consignee’s addresses,
Hazard labels, and quantity if packages differ.
Liquid Marker
Solid Marker
Shipping Papers
Papers are always required and must use the “Y” packaging instruction in the description.
Placarding
Not applicable.
SAFE AND COMPLIANT BATTERY SHIPPING SOLUTIONS
Shipping batteries requires careful handling and adherence to specific regulations to ensure safety and compliance. Our team understands the complexities of battery shipping, from proper packaging and labeling to meeting transport mode regulations across air, ocean road, and rail.
SHIPPING MORE THAN LIMITED QUANTITY
LABELING RESPONSIBILITY

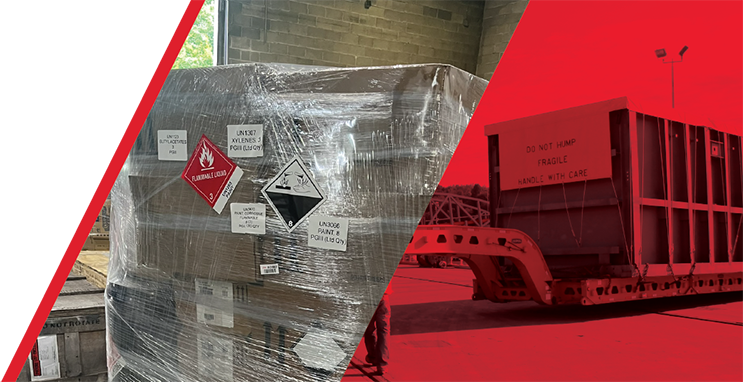

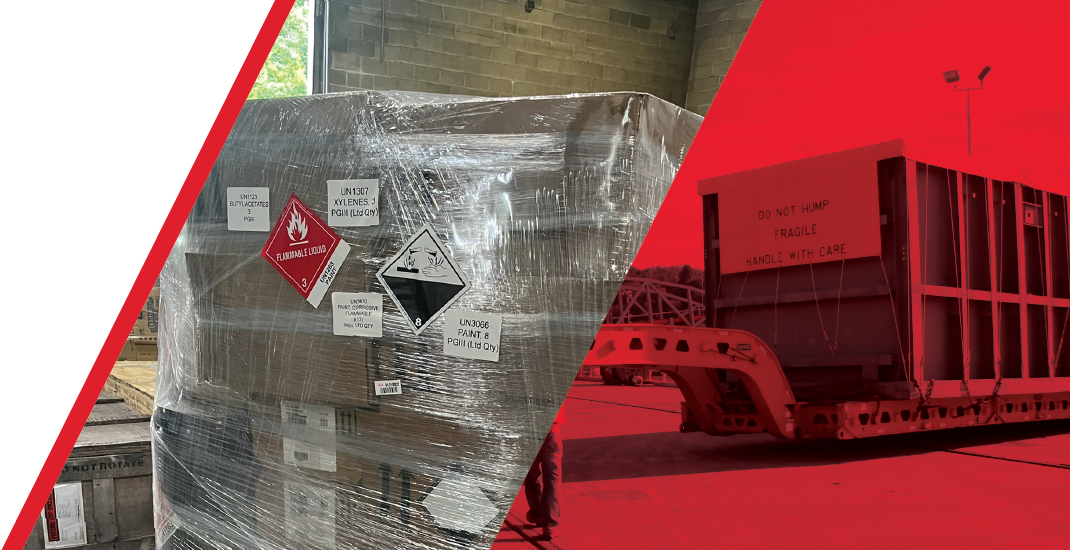

It is the responsibility of the shipper to not only package and tender the paperwork to the transportation carrier. It is also the responsibility of the Shipper to properly sticker the pallets, and boxes with the appropriate hazmat markings.
The Shipper is also responsible for providing the transportation provider with the appropriate equipment hazmat markings to be placed on the trailer and/or container. 49 CFR 172.516
HAZMAT TRAINING
Hazmat employees must undergo training to ensure compliance with the latest regulations. This includes general awareness, function-specific, and security awareness training. Recurrent training is required every three years for ground and vessel shipping and every two years for air shipping.
